Surface Support Buoys

General surface support buoys are extensively used in single point mooring (SPM) system. The three main types are cylindrical buoys, chain-through buoys and pick-up buoys.

Construction of General Surface Support Buoys

Evergreen Maritime general surface support buoys are manufactured with high quality closed-cell PE/EVA resilient foam, encapsulated with self-coloured tough polyurethane elastomer skin.

Cylindrical Buoys Ready for Shipment

Cylindrical Buoys Ready for Shipment

A. Laminated closed cell resilient foam core, unsinkable design

General surface support buoys are made with highest quality closed-cel PE/EVA foam. This resilient foam make the buoys self fendering with high impact absorption capacity. Even the skin was punctured, it also is unsinkable without absorbing water. With our unique laminating process, each foam core is integrity. The foam core cannot be ruptured after long time service.

B. Tough nylon filament reinforced polyurethane skin

General surface support buoys’ skin is constructed of polyurethane elastomer which is reinforced with nylon filament. The polyurethane skin is unique elastomer specifically for offshore applications. It is high resistance to abrasion, fatigue and ultra violet degradation and is significantly more durable.

C. Steel work and end assembly

Through central steel tube with longitudinal gussets and external load distribution flanges at each end, epoxy coated or hot-dipped galvanized, are encased in a closed-cell urethane foam central body. Optional bail eye, clevis eye, swivel, chain locking plate, single locking pin end fitting are available.

Cylindrical Buoys (YT-CB)

Cylindrical buoys

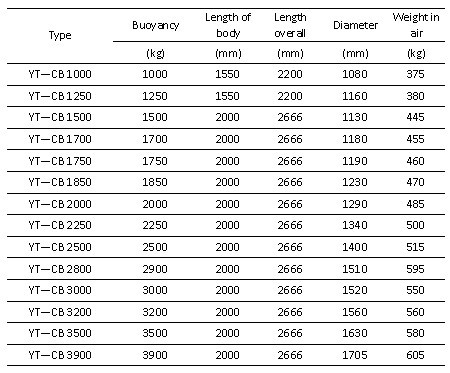

Specification of cylindrical buoys

Chain-through Buoys (YT-CTB)

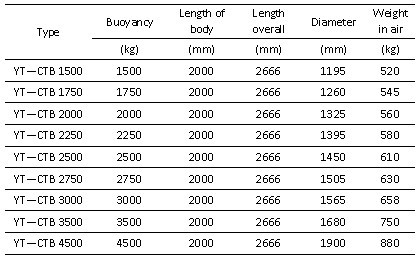

chain through buoysSpecification of chain through buoys

Pick-up Buoys (YT-PUB)

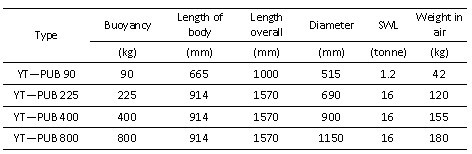

specification of pick up buoyspick-up buoys

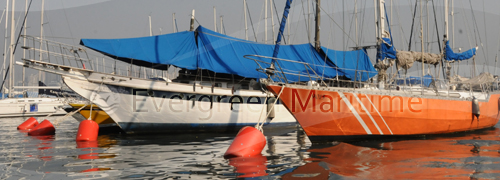

Our Surface Buoys used in Hongkong

Our Surface Buoys used in Hongkong
