Anchor Pendant Buoys

Evergreen Anchor Pendant Buoys are available in a wide range of sizes, can be supplied in suitcase, modular and non-modular type, and in custom and standard configurations. All are supplied with removable central steelwork configured as per the customer’s requirements – be it the typical handling crucifix/ padeye arrangement or a through hawse for use with anchor wire rather than chain

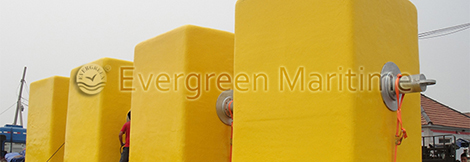

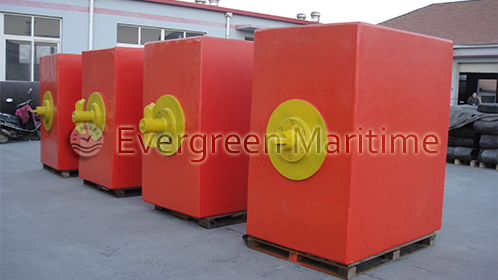

Suitacase Anchor Pendant Buoys

Evergreen Suitcase Anchor Pendant Buoys are designed to withstand the rigorous conditions associated with the offshore industry.

Evergreen Suitcase Anchor Pendant Buoys are manufactured from resilient, closed cell polyethene foam. The closed cell structure of the resilient PE foam core menas that the buoy will not absorb water, even if the skin is punctured therefore maintaining buoyancy and functionality.

Designed specifically with large flat surfaces for safe and secure storage onboard anchor handling vessels, Evergreen Anchor Pendant Buoys have an enviable reputation for quality and performance.

Evergreen Anchor Pendant Buoys are constructed by laminating resilient PE foam around a central steel member with a number of internal load distribution plates, together with large gussets welded in position. This resilient PE core ensures that the buoy is completely self fendering (i.e. soft buoy), The rectangular shape also allows easy and safe storage and transportation.

The whole core is encapsulated within a self colored polyurethane elastmer protective coating which is resistant to abrasion and to ultra violet degradation.

The table blow shows a range of standard sizes only, other sizes or specific buoyancy / dimensions required are evaluated on application. A variety of steelwork options, e.g. anchor cross, pad eye, swivels etc. are available.

Standard colors are orange or yellow but other colors are available on request. Further options are available too.

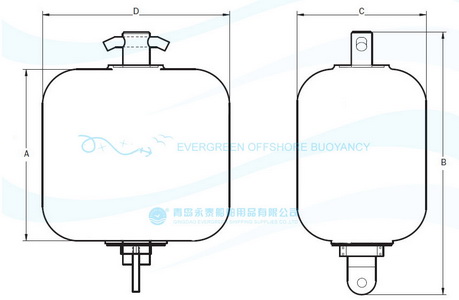

suitcase anchor pendant buoys

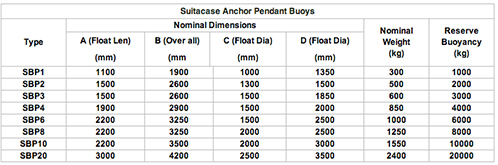

Specification of suitcase anchor pendant buoys
