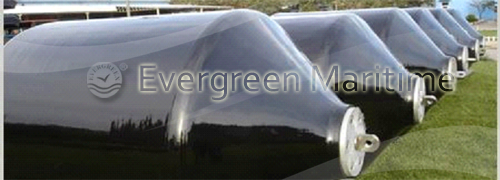

Ever-Guard Foam Filled Fenders

Evergreen Maritime is China leading manufacturer of high performance foam filled fenders, floating fenders for the marine and offshore industry.Ever-Guard foam filled fenders

Ever-Guard netless foam filled fenders is one kind tough heavy-duty floating fenders system for harbor, offshore and ship-to-ship application. Ever-Guard foam fenders are able to absorb 40% more energy than similar sized pneumatic rubber fenders, with relatively gently reaction force as compared to other marine fenders system.

Advantages of Ever-Guard Netless Foam Filled Fenders

Ever-Guard foam filled fenders are constructed with closed-cell, energy absorbing resilient foam laminated layers, nylon filament reinforced, tough polyurethane skin. This construction offers a number of important features and advantages.

Ever-Guard Netless Foam filled Fenders●  High energy absorption and low reaction force
●  Wide range of standard and customer size
●  Tough, nylon filament reinforced polyurethane skin
●  Unsinkable design even if skin is punctured
●  Low Maintenance
●  Easy installation
●  Burst Resistance

Construction of Ever-Guard Netless Foam Filled Fenders

Ever-Guard foam filled fenders are fabricated with closed-cell resilient foam filled, with tough polyurethane elastomer skin, reinforced with nylon filament.

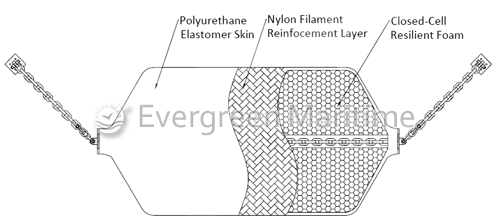

Ever-Guard Foam Filled Fenders Construction

Ever-Guard Foam Filled Fenders Construction

a.  Ever-Guard foam filled fenders are filled with highest quality 100% closed-cell foam. This specific foam can provide high energy absorption with relatively low reaction force. Even the skin was punctured, it also is unsinkable without absorbing water. With our unique laminating process, each foam core is integrity. The foam filled fenders core cannot be ruptured when compressed.

b.  Ever-Guard netless foam filled fenders skin is constructed of polyurethane elastomer which is reinforced with nylon filament. The polyurethane skin is unique elastomer specifically for fender applications. More thick filaments and elastomer are applied to both ends to better resist the defection and shearing force.

c.  Comprising through central steel tube and external load distribution flanges at each end. Heavy duty internal chain connecting the end fitting through central tube is applied to transmit tensile load through the fender. All end fitting of foam filled fenders are hot-dip-galvanized.

Performance of Ever-Guard Netless Foam Filled Fenders

Ever-Guard netless foam filled fenders are normally supplied with standard capacity. Low reaction capacity, or high capacity also are available upon request.

Diameter x Length Standard Capacity Foam Filled Fenders
Metric English Energy Absorption
at 60% Compression
Reaction Force
at 60% Compression
(mm) (ft) (ft-kips) (ton-m) (kip) (ton)
700×1500 2.3×4.9 19 3 30 13
1000×1500 3.3×4.9 35 5 39 17
1000×2000 3.3×6.5 50 7 57 26
1200×2000 3.9×6.5 67 10 63 28
1350×2500 4.4×8.2 112 16 94 42
1500×3000 4.9×9.8 171 24 130 59
1700×3000 5.6×9.8 208 29 139 63
2000×3500 6.5×11.5 335 47 190 86
2000×4000 6.5×13.1 398 56 226 102
2000×4500 6.5×14.7 460 64 261 118
2500×4000 8.2×13.1 591 82 269 122
2500×5500 8.2×18.0 885 123 402 182
3000×6000 9.8×19.7 1365 189 516 234
3300×4500 10.8×14.7 1105 153 380 172
3300×6500 10.8×21.4 1786 248 614 279

— Note: Other sizes and capacity models, high capacity, extra high capacity, are vailable up to customers’ requirements.

All Evergreen Maritime Ever-Guard netless foam filled fenders are manufactured comply with US Navy and Coast Guard specification, and PIANC Guidelines.

Ever-Guard Netless Foam Filled Fenders

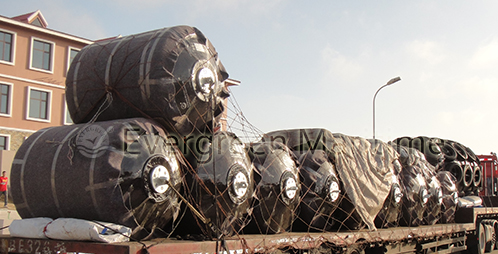

Ever-Guard Netless Foam Filled Fenders Ready for Shipment

To see more pictures of Ever-Guard Netless Foam Filled Fenders on Alibaba Showroom or Flickr.
